Precision Piercing: The Anatomy of the Jeweller's Saw and Broken Blades

The sound of a snapping saw blade is the rite of passage for every bench jeweler. In the early days, you might go through a gross of 2/0 blades in a single month, assuming you simply need a gentler touch. But blade breakage is rarely a problem of hand strength; it is almost universally caused by three variables: incorrect frame tension, cutting on the upstroke, and improper blade sizing relative to metal gauge.

Mastering the jeweler’s saw frees you from reliance on pre-cut blanks, giving you the freedom to pierce intricate negative space and execute clean silhouette lines.

1. Sizing Blade to Gauge: The "Three-Tooth Rule"

The golden rule of sawing sheet metal is straightforward: at least three saw teeth must contact the thickness of the metal at all times.

• If your blade teeth are too coarse, the metal edge falls between the teeth, catching the blade and instantly snapping the steel.
• If your blade is too fine, the teeth choke with metal dust, slowing your cut to an agonizing crawl.

2. Tuning the Saw Frame: The High "Ping"

A jeweler's saw blade cuts exclusively on the downstroke.

1. Insert the blade into the top clamp with teeth pointing forward and down toward your bench pin.
2. Rest the frame handle against your sternum or bench edge, compressing the frame inward by about 2mm.
3. Tighten the bottom clamp securely and release the frame tension.
4. Pluck the blade with your fingernail. It should emit a crisp, high-pitched musical "ping." If it produces a dull thud, it is loose. A loose blade flexes, binds, and snaps immediately.

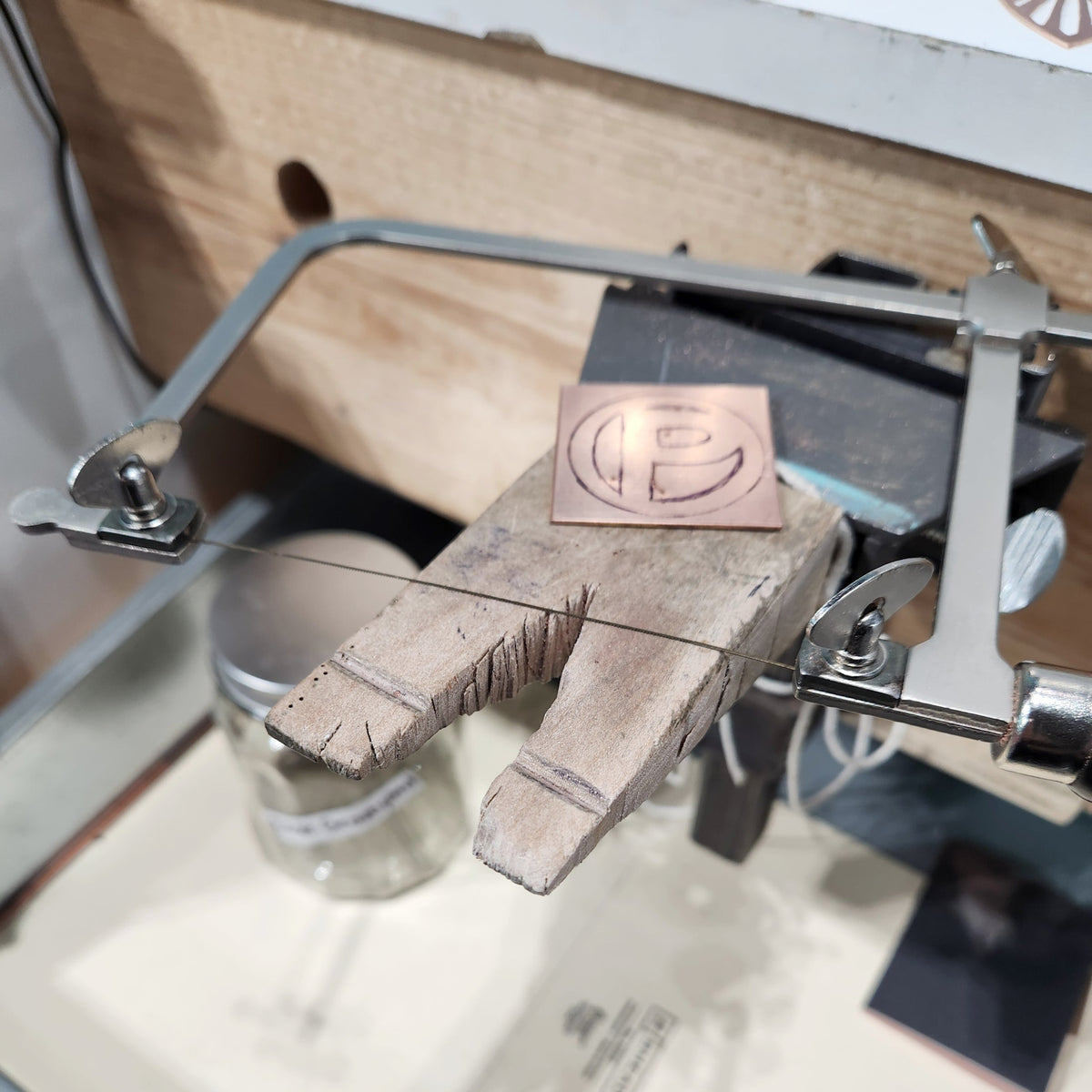

3. Body Mechanics at the Bench Pin

Let gravity and the blade do the cutting. Never push the saw forward into the metal; instead, use full, rhythmic, vertical strokes using the entire length of the blade. Lubricate your blade every three inches of sawing using beeswax or BurLife. When turning a sharp corner, keep the saw frame moving continuously up and down in place while gently rotating the metal sheet around the blade.
